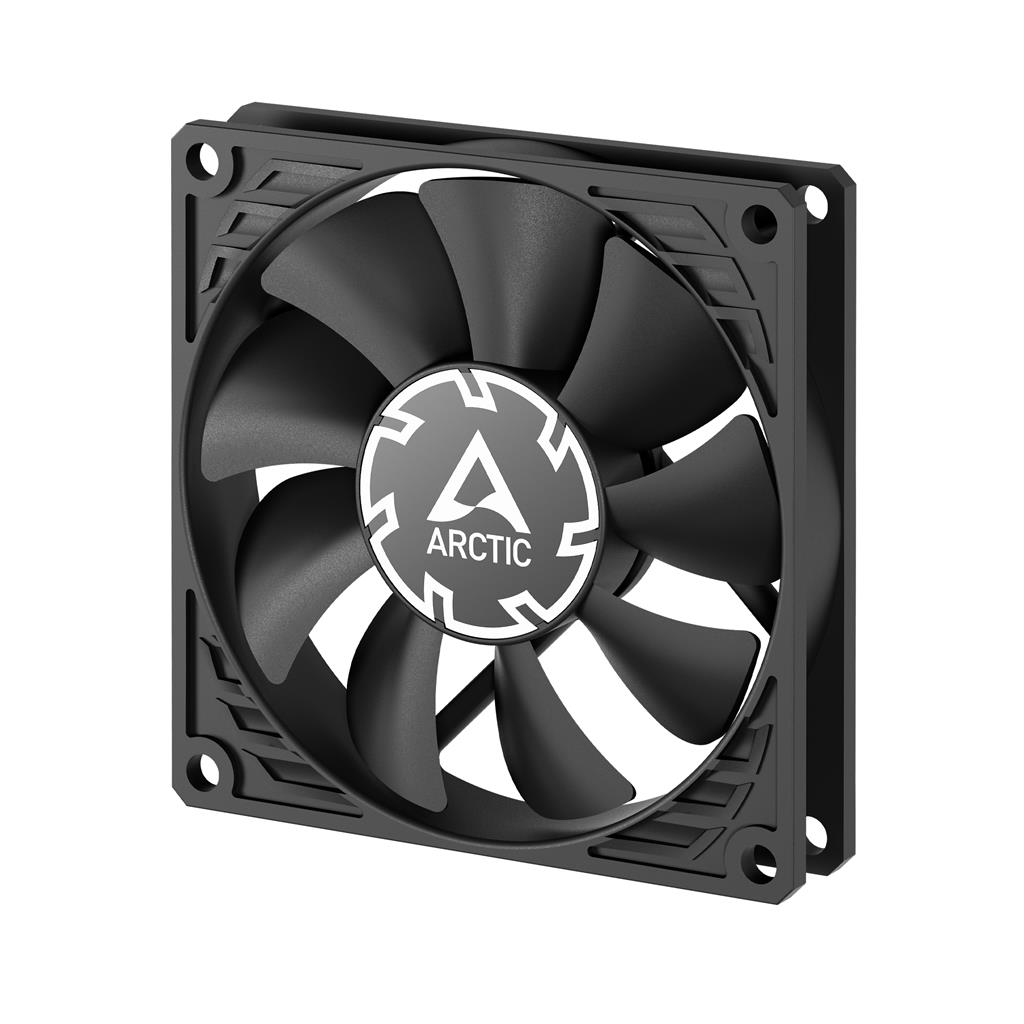

Arctic P8 Slim 8Cm Pwm Case Fan

80 mm Low-Profile PWM Fan with Cable Splitter

Speed: 300-3000 rpm (PWM controlled) (0 rpm below 5 % PWM)

Airflow: 22.5 cfm

Static Pressure: 2.35 mmH2O

Bearing: Fluid Dynamic Bearing

Connector: 4-Pin Connector + 4-Pin Plug

Start-up Voltage: 6.9 V DC

Current | Voltage: 0.095 A | 12 V DC

Cable Length: 400 mm + 80 mm Black

Optimal for HTPC SBC and Slim Systems

Thanks to its low installation height of 15 mm and highly energy-efficient operation the P8 Slim PWM PST is suitable for use in small PCs such as single-board computers and the entire SFF range.

300 to 3000 rpm Controlled via PWM PST

With a wide speed range and innovative PWM Sharing Technology (PST) the P8 Slim PWM PST's fan speed can be controlled in sync with other fans. ARCTIC's PST fans come equipped with their own built-in daisy-chain solution and in addition to the plug-in connector have another socket to which an additional fan or up to four other PST fans can be connected in series.

Ideal for Small Spaces

Unlike standard 80 mm case fans with a thickness of 25 mm the P8 Slim PWM PST has a mounting height of only 15 mm. This makes it the ideal choice for Small Form Factor (SFF) builds.

0dB Mode — Zero rpm

The speed of the P8 Slim PWM PST can be throttled down to a standstill via PWM. This allows efficient and silent PC operation in idle while guaranteeing maximum performance on demand.

Optimised for High Static Pressure

Because the fan design of the P8 Slim PWM PST is optimised for focused airflow it generates high static pressure. The fan enables extremely efficient cooling and good airflow — even with increased air resistance. This makes the P8 Slim PWM PST particularly well-suited for use on concealed case intakes dust filters radiators and generally in small cases that have little space for free airflow due to compactly placed hardware.

Maximum Smoothness Minimum Vibration

The operating noise of the newly-developed ARCTIC motor is barely perceptible even at the lowest speed. Thanks to its special magnetization the motor of the P-fans generates no start-up jerks and only a fraction of the commutation vibrations of a conventional DC motor. As a result there is far less vibration on the housing at different speeds and no need for rubber buffering or additional decoupling.

High-Quality Sleeve Bearing

Thanks to a combination of alloy and lubricant developed in Germany friction within the bearing is minimized and greater efficiency is achieved. In addition to preventing lubricant loss wear on the pin and sleeve is also reduced to a minimum. Less heat is developed less bearing noise is generated and the life of the fan is extended significantly.

Improved Service Life

The new ARCTIC motor generates significantly less frictional heat than its predecessors and current competitor models. The lower coil temperature therefore multiplies the service life and reduces frictional losses for more efficient operation.

Quality You Can Rely On

To ensure the longevity of our products we carry out long-term tests under different sometimes very adverse conditions. In this way we learn how we can permanently improve our products for our customers. In addition the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality but also in terms of durability. This is a certainty that we are happy to pass on to our customers which is why we give a 6-year manufacturer's guarantee.
